Aegis Protective System Cases
Valuable mission critical equipment deserves the ultimate protection.
Customizable in every aspect of the Aegis protective system in order to meet your specific protection requirements from vibration attenuation to shock and impact protection, waterproofing to dust exclusion. Aegis Protective System’s, vastly experienced project teams work closely with our customers from concept, through design and development, to delivery and installation, ensuring performance requirements are met. Specifically designed to suit your weapons and equipment transportation needs, including integrated fittings, fixtures & custom foam inserts as required.
All of the Aegis Protective System Transport Cases are designed and engineered to meet the most stringent standards.
NATO Standard Packaging Test STANAG 4340
NATO Standard Packaging Preservation for Defence Material. STANAG 4280
Defence DEF-STAN 81-41 Level J = items can be stored anywhere in the world, within any climatic condition for up to 2 years.
Defence DEF-STAN 00-35 = to validate a material’s ability to withstand the effects of specific environmental testing, vibration, shock, acoustic noise, temperature, humidity, sand and dust, altitude and pressure, among others.
US Military MIL-STD-810G = to ensure a certain level of durability with a series of 29 tests.
Air Transport Association ATA 300 Category 1 = road cases for heavy and high value spares as well as smaller and lighter weight avionics. Category 1 containers are effective for 100 trips & must survive demanding drip or impact tests.
IP67 Dust Proof = device is completely dust-proof.
Along with Pilfer proof lockable latch mechanism.
Environment & Performance Testing
- Salt Corrosion (Severity 1 regular exposure) to Def Stan 00-35 Part 3 Issue 4.
- Solar Radiation to MIL-STD-810G (test method 505 procedure 2)
- Solvent Resistance to MIL-STD-810G (test method 504.1 procedure 1)
- Fungus susceptibility to MIL-STD-810G (Change 1 method 508.7)
- Constant Low Temperature to Def Stan 00-35 Issue 4, Part 3 (-46°C for 24 hours duration)
- Constant High Temperature, High Humidity to Def Stan 00-35 Issue 4, Part 3 (+71°C and 80% RH for 24 hours duration)
- General Purpose Vibration to Def Stan 00-35 Issue 4, Part 3 for Materiel Transported by Wheeled Vehicles as Restrained Cargo.
- IPX7 to BS EN 60529:1992+A2:2013 – Protected against the effects of temporary immersion in water.
- IP6X to BS EN 60529:1992+A2:2013 – Dust Tight.

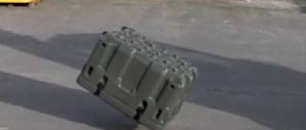

- STANAG 4280 – Free Fall Shock Drop Test.
- UN Dangerous Goods Packaging Performance – various cases, cold conditioned to -20°C were drop tested from 1.2m onto each face and one corner.
Your equipment deserves protection!
Aegis Protective System Cases are customizable in every aspect, in order to meet your specific protection requirements. Specifically designed to suit your weapons and equipment transportation needs, including integrated fittings, fixtures & custom foam inserts as required.
Call today to discuss your specific requirements for a Aegis Protective System Case for your equipment today.
